In the highly competitive cable manufacturing industry, speed and quality are no longer trade-offs—they’re expectations. One solution increasingly favored by leading manufacturers is the 14 wires drawing machine, an advanced form of cable machinery designed to produce multiple fine copper wires with unmatched consistency and efficiency. Unlike traditional single-wire or small multiwire setups, a 14 wires drawing machine is engineered for high-volume, high-precision applications where dimensional accuracy and synchronized production are critical. At JOC Machinery Co., Ltd., we provide advanced drawing equipment that meets the demands of industries such as aerospace, medical technology, and high-frequency electronics, where cable quality simply cannot be compromised.

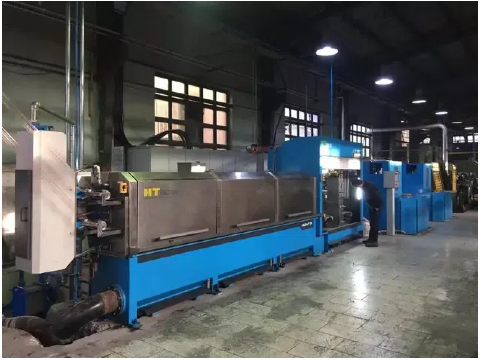

A 14 wires drawing machine is a type of multiwire drawing machine capable of processing 14 individual wires simultaneously through a series of drawing dies. Each wire undergoes progressive diameter reduction while maintaining mechanical integrity and consistent surface quality. The machine is fully automated and integrated with tension control systems, lubrication, and centralized PLC management.
This equipment is not meant for small operations—it’s built for manufacturers who require large-scale output of fine gauge wires with very narrow tolerance margins. The output wires can range from 0.15 mm to 0.5 mm in diameter, making them ideal for precise cable bundling, data transmission, and sensor systems.
By integrating a 14-wire configuration into their workflow, manufacturers can produce over ten times more output than single-line operations, all while ensuring that each wire meets identical performance and dimensional specifications.
While machines with 4, 6, or 8 wires offer efficiency gains over single-wire systems, the 14-wire setup is a different category altogether in terms of complexity, control, and capacity.
With 14 active drawing lines, maintaining consistent drawing speed and tension across all wires is paramount. These machines are equipped with advanced PLCs (Programmable Logic Controllers) that coordinate all motion, pressure, and thermal parameters in real time. Feedback loops from tension sensors allow the system to make micro-adjustments to each wire’s path, ensuring uniform results.
The die configuration in a 14-wire machine is optimized for balance. Each drawing head must maintain exact alignment and thermal equilibrium. Even a minor inconsistency in one channel can affect the entire output. That’s why these machines use high-quality tungsten carbide or diamond dies, with individual cooling and lubrication channels to minimize wear and maintain dimensional accuracy.
Unlike traditional machines, where increasing output often means sacrificing precision, a well-calibrated 14-wire system enhances both speed and quality. The payoff is especially valuable for customers who require bulk quantities of wire without tolerating surface flaws or thickness deviations.
The most compelling reason to invest in a 14 wires drawing machine is the significant improvement in product quality, especially when dealing with fine-gauge wires for high-end applications.
Thanks to the synchronized multi-channel tension and drawing control system, every wire coming off the machine maintains identical diameter and elongation properties. This consistency is crucial in multi-conductor cables used for signal integrity in data and communication systems.
Enhanced lubrication distribution and cooling efficiency ensure that wire surfaces remain smooth and free of oxidation or abrasions. This not only improves conductivity but also reduces breakage risk during downstream processing like insulation extrusion or bundling.
Because of the precision and stability of a 14-wire setup, manufacturers experience fewer breaks, diameter inconsistencies, and surface flaws. This results in less material waste, improved throughput, and better production economics.
Certain industries place exceptionally high demands on wire uniformity, surface finish, and mechanical performance. The 14 wires drawing machine is tailored for these precision-oriented sectors:
Wiring systems in aircraft and defense equipment must be lightweight yet durable, with perfect conductivity and minimal tolerance for variation. Multi-conductor systems often rely on tightly packed, fine-gauge copper wires that can only be produced using advanced drawing setups.
Medical diagnostic tools, surgical instruments, and implantable electronics require extremely thin, precise wires. Any deviation in resistance or physical dimension could affect functionality or safety. 14-wire drawing systems are perfect for such high-specification applications.
From high-frequency data cables to sensors and micro-motors, modern electronic devices are built with miniaturized components that rely on flawless cabling. Manufacturers serving this segment benefit greatly from the uniformity and quality enabled by 14-line drawing systems.
JOC Machinery has delivered solutions to each of these sectors, customizing equipment setups to meet application-specific requirements across multiple countries and compliance standards.
The effectiveness of a 14 wires drawing machine isn’t just about the drawing unit itself—it’s about how well it integrates into a fully connected production line. At JOC Machinery, we help clients ensure seamless coordination with both upstream and downstream equipment.
The pay-off units must be capable of handling large coils of copper rod with even feeding. In some cases, a pre-annealing unit is included to soften the copper prior to drawing, which enhances wire flexibility and reduces die wear.
Once drawn, the 14 wires can be immediately passed to a bunching or stranding machine, where they are twisted into cable cores. Following this, an extruder applies insulation or jackets. Synchronizing the speed and tension across all machines is essential to avoid stretching or compression.
Most 14-wire systems today come with a centralized control panel that allows operators to monitor the drawing, tension, cooling, and lubrication parameters for all 14 lines. Integration with factory-wide data systems enables predictive maintenance and performance tracking.
JOC Machinery offers turnkey solutions that include not only the drawing machine but also matching components for insulation, coiling, and real-time monitoring—creating an end-to-end smart cable production line.
If your production goals include high-volume output, extreme wire precision, and reduced scrap rates, investing in a 14 wires drawing machine is a logical and forward-thinking move. These machines represent the pinnacle of modern cable machinery, combining robust hardware, intelligent control, and synchronized operation to deliver unmatched efficiency and product quality.
At JOC Machinery Co., Ltd., we bring over two decades of experience in delivering advanced cable machinery solutions to clients in more than 40 countries. Our 14-wire systems are built for reliability, scalability, and long-term ROI, tailored to the specific needs of industries that can’t afford to compromise on cable performance.
Contact us today to learn how our 14 wires drawing machines can become the cornerstone of your next-generation cable manufacturing operation.
