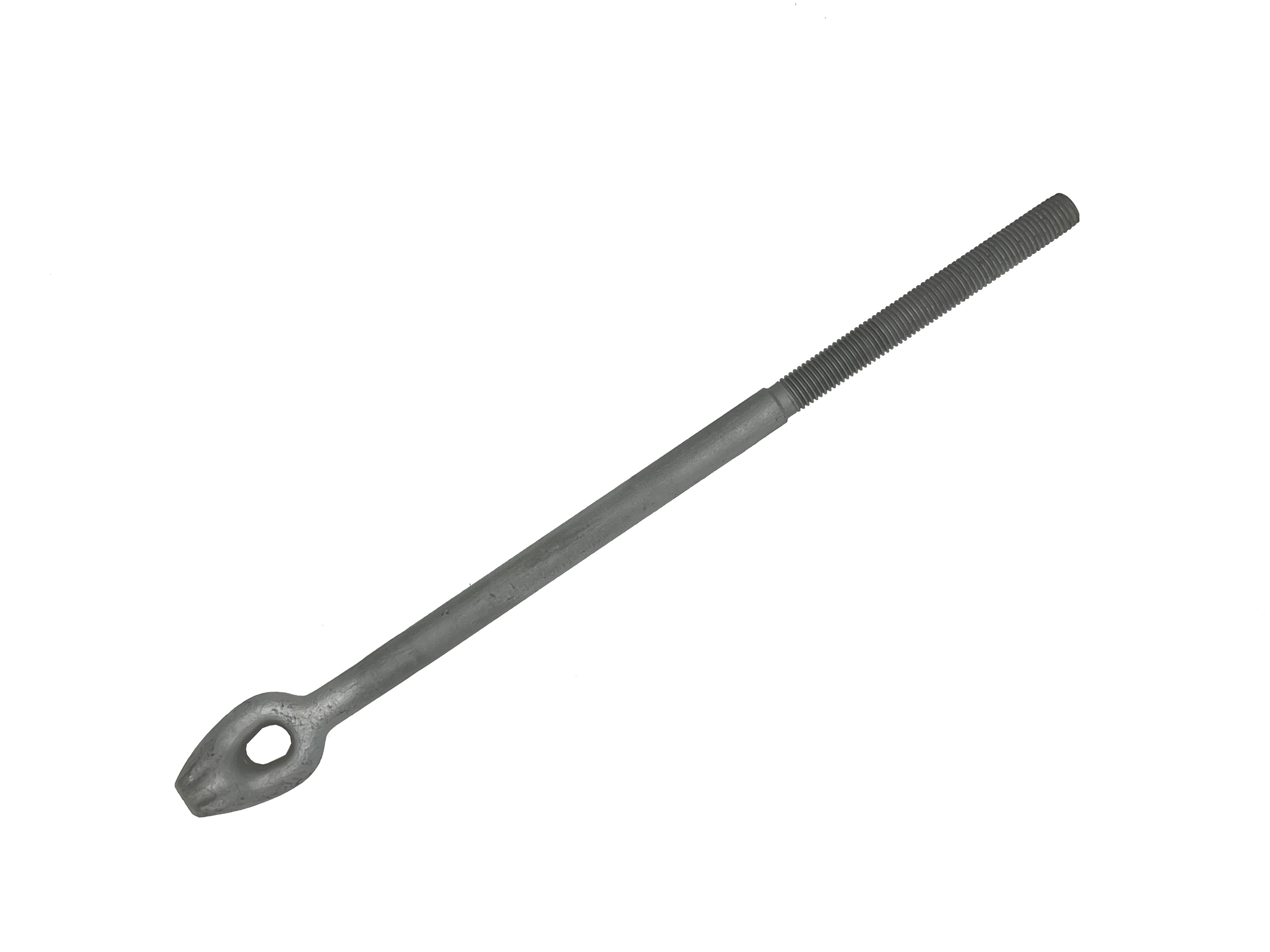

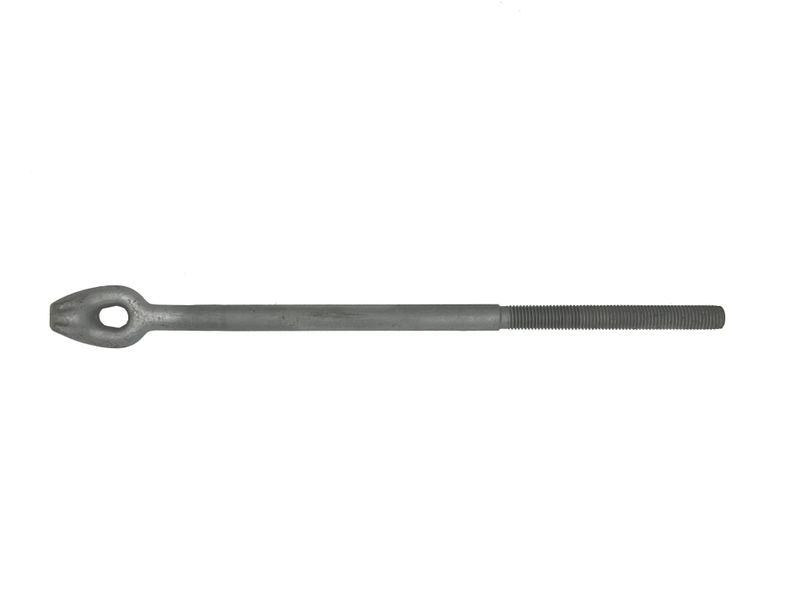

Eye Bolt

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Material

carbon steel
Heat treatment Hot dip galvanized
Process

forging & machining

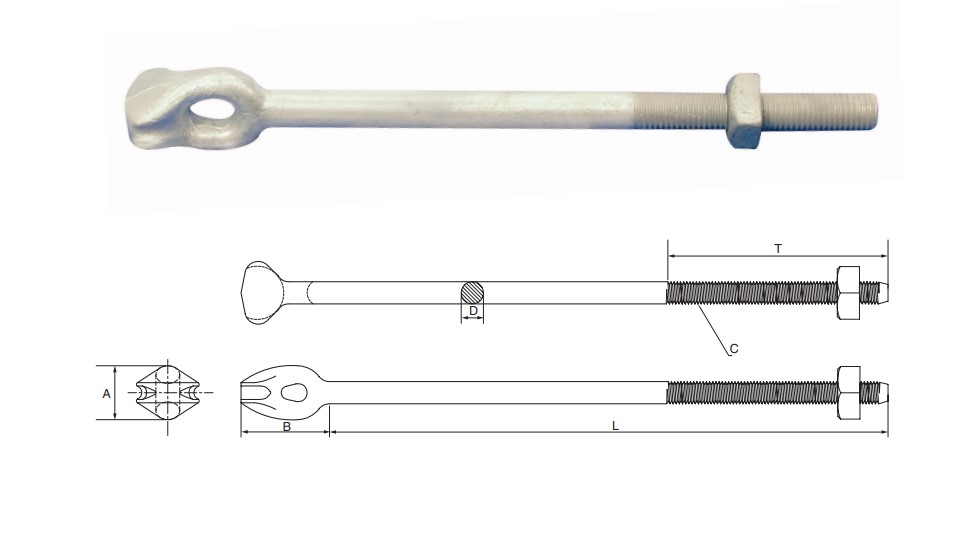

屏幕截图 2023-09-07 160342

CATALOG NUMBER DIMENSIONS(INCH)
A B C D T L
GBS-1 1 1/2 2 1/2 5/8-11 UNC-2A 5/8 4 10
GBS-2 1 1/2 2 1/2 5/8-11 UNC-2A 5/8 6 20
GBS-3 1 7/8 2 7/8 3/4-10 UNC-2A 3/4 4 10
GBS-4 1 7/8 2 7/8 3/4-10 UNC-2A 3/4 6 12
GBS-5 1 7/8 2 7/8 3/4-10 UNC-2A 3/4 6 20
