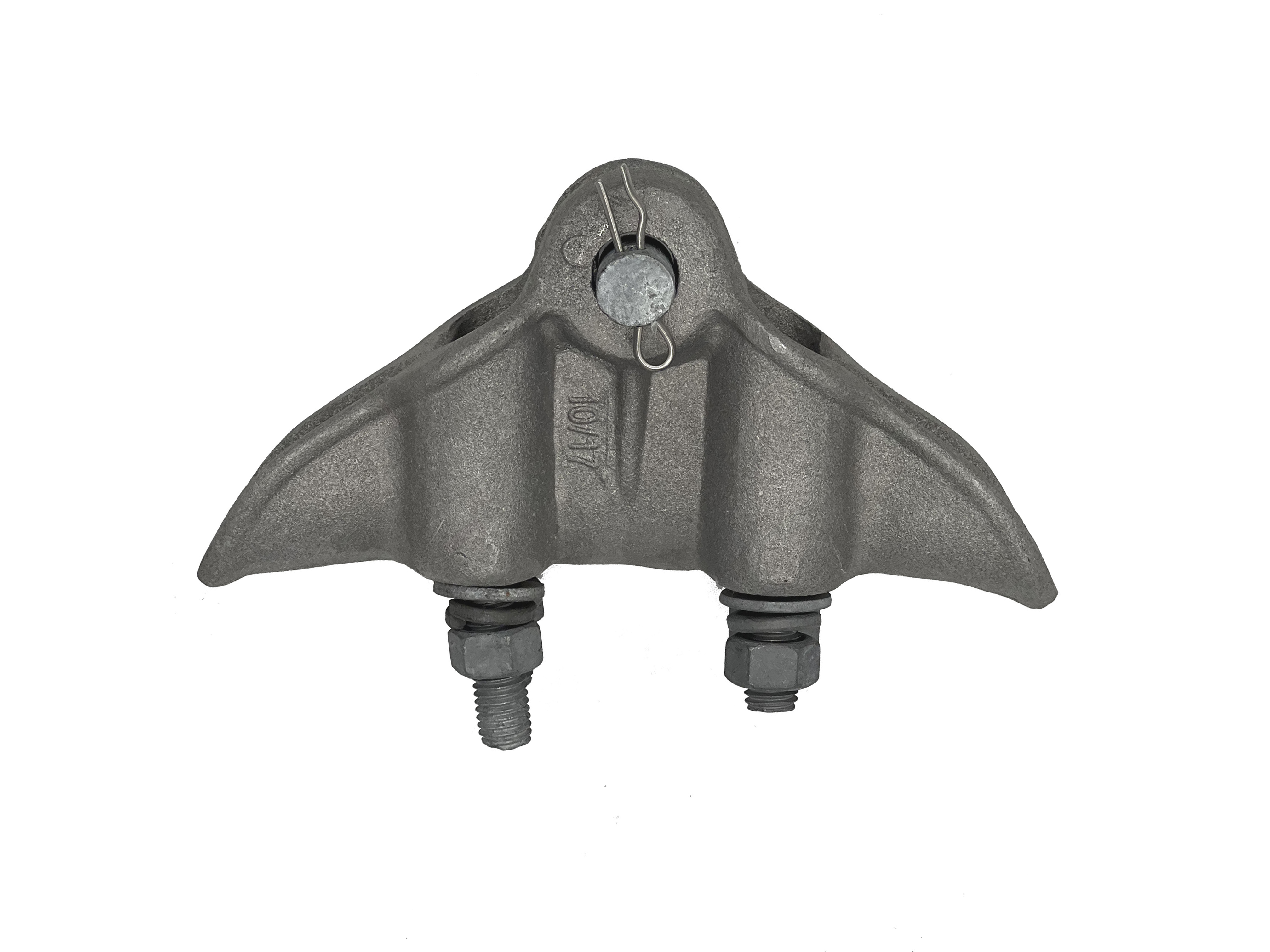

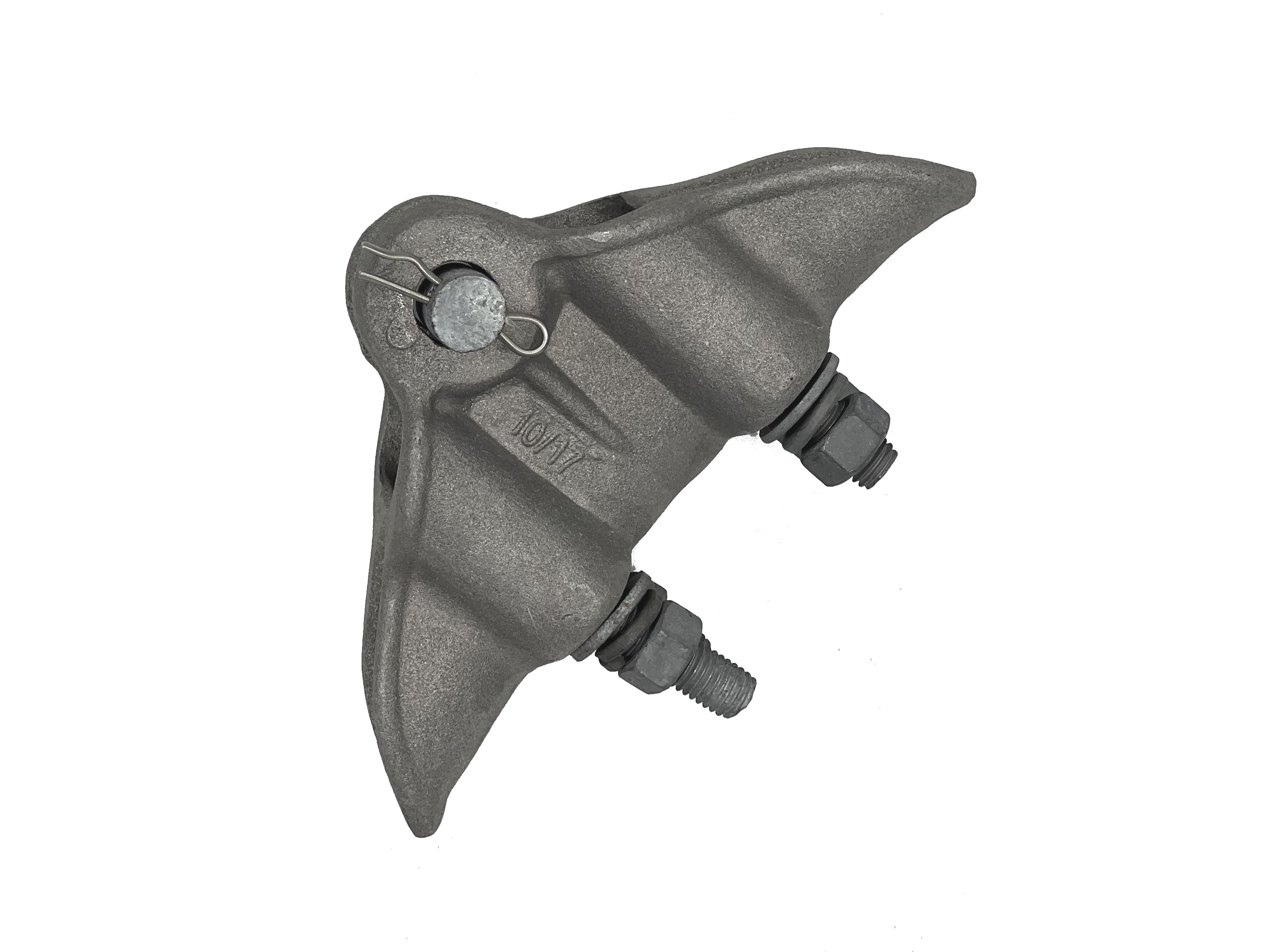

Suspension Clamp

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Material

aluminum, ductile iron
Surface treatment Hot dip galvanized
Process

casting

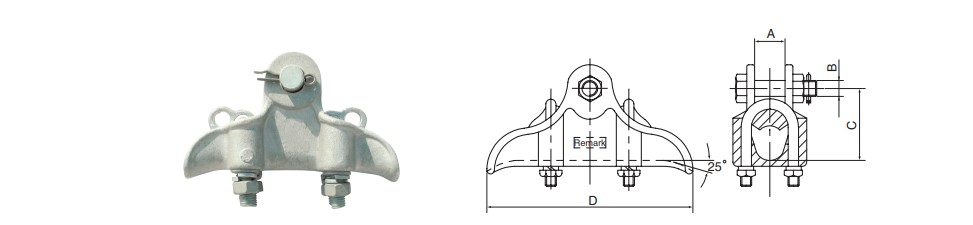

屏幕截图 2023-09-07 162959

JOC CATALOG NUMBER DIMENSIONS(MM) ULTIMATE STRENGTH (KN)
A B C D
SUPH-1 18 16 50 140 40
SUPH-2 27 16 52 203 50
SUPH-3 33.5 16 68 216 60
SUPH-4 22 16 65 170 65
SUPH-5 40 16 74 230 70


Previous:
Next:
transmission line suspension clamp cable wire conductor insulator hardware ACSR
